Hydration and Drying

From Card Conservation Wiki
(Redirected from Heat Press Drying)
Hydration, Drying & Heat Press
 Difficulty: Intermediate to Advanced | Risk Level: Moderate to High | Time: 2-8 hours hydration + 12 hours pre-wick + 1-8 hours press + cooling
Tools: EVA foam pads, parchment paper, spring clamps, distilled water or hydration solution, a book, heat press, aluminum sheets, IR thermometer, blotter paper, screwdown holder
🔓 Free Resource — No Login Required
This is the wiki's complete heat press guide, free and open to everyone. All of the heat press material is on this one page, including what not to heat press. See every free guide at Free Resources.
🎬 WATCH THE FULL TALK
See Matthew Musick walk through every slide at the Card Conservation Convention
This page is the written version. In Part 3 — Hydration & Drying of the CCC 2026 video, Matthew presents the whole deck in detail, covering hydration and drying with the heat press.

Overview

Hydration is the single most misunderstood step in card restoration. Most of the damage people blame on pressing — faded paint, bubble creases, separated layers, warped backs — is not caused by the press at all. It is caused by moisture that was introduced wrong, or removed wrong, before the press ever closed.

This page covers the complete moisture and heat cycle:

  • What NOT to heat press — the cards a press destroys, and why. Read it first
  • Part 1 — The Science (Matthew Musick): what a card is made of, how each layer responds to water and heat, how much moisture each card stock needs, the Hydro Pump method, pre-wicking, press temperatures and the layering order
  • Part 2 — Community Methods: blotter stacks, the community temperature guide, cooling, the refrigerator set, the IPA vapor crease method, no-heat rapid drying, equipment and safety
  • Diagnosis: common mistakes, troubleshooting, and what can't be fixed
Tip: This page replaces the old member-only Heat Press and Heat Press Drying pages. Both now redirect here, so existing links still work.

Source and credit. This guide is adapted and published with permission from Hydration & Drying: The Science Behind Card Restoration, a presentation by Matthew Musick of Shiny Asset Exchange LLC — founder of Shiny Asset Exchange, creator of the Hydro Pump and Fire Blast methods, and a pioneer of modern heat press card restoration. Matthew has restored thousands of cards for hundreds of collectors since January 2024. He is also the author of the Restoration Service Agreement Template hosted on this wiki.

📄 Download the Original Presentation
All 31 slides, free — including the before/after restoration examples and reference photos.

What NOT to Heat Press

🛑 Read this before any card goes in a press
A heat-press setting is only "safe" for a specific card class. 150 °F is gentle on a WOTC holo and has destroyed a modern gold secret rare. This section lists the cards that should not go in a heat press at all, and the ones that can only go in under tighter limits. Pressure without heat, at room temperature, is almost always the safer choice for them. See Pressing and Flattening.

Why some cards can't take heat: the plastic front

The front of most holo and foil cards is not paper. It is a thin plastic film (PET, the same polymer used in drink bottles) with the foil bonded to it, and that film sits on top of the cardstock. Card Anatomy below covers the full layer stack. Two properties of that film cause nearly every heat failure on this page:

  • It softens in the same range card presses run at. PET's glass transition — where it turns from rigid to rubbery — is roughly 150–175 °F (65–80 °C). Every press cycle in this guide runs just below that point or right at it. That is the reason the working temperatures are 150–160 °F and not 200 °F, and it is why ten degrees of dial error matters.
  • Plastic film shrinks when heated, and paper doesn't. Film is stretched during manufacture, and heat lets it pull back toward its original size. The paper under it is held in place by the press. If the film contracts while the paper can't move, it either pulls back from the card edges and exposes the paper layer, ripples and tunnels where the foil bond lets go, or cracks where it is too thin or too brittle to stretch.

The thinner the film, the more its shrink dominates. The more of the card's face is covered by film and foil, the less un-foiled area there is to absorb the stress. Older film is also more brittle than new film. Those three facts predict most of the list below.

Tip: Episode 41 of the Cardboard Alchemists podcast (Drying) gives the same rule from the practical side: stay at 150–160 °F for about an hour, "low and slow", because 170 °F and above can permanently shrink the plastic layer. See Video Resources.

Do not heat press

Card / class What goes wrong Rating Basis
Legendary Collection (2002) — holos and reverse holos The reverse-holo "fireworks" foil is a single plastic film across the entire face, so there is no un-foiled area at all. The regular holos are film over the art window. Heat shrinks and crazes the film. This class is already the worst case for heat-pen greying. 🚫 Destructive Community reports · CSD-INC-0002 (heat pen) · C · Single Report
Japanese e-Card era (Card e, 2001–2002) and Japanese ex era (2003–2006) holos — the ones with the very thin, glossy plastic front Restorers describe the front film on these as very thin. It sits on the thinnest Pokémon stock ever made. Reported to crack or shrink under heat press temperatures that English cards from the same era handle without trouble. 🚫 Destructive Community reports · C · Single Report
Call of Legends (2011) Reported alongside the Japanese thin-film cards as cracking or shrinking under heat. 🚫 Destructive Community report · C · Single Report
Gold hyper / gold secret rares (2014–present) The metallised film covers the whole card. Foil tunnelled and bubbled across the entire artwork and the texture flattened at only 150 °F for 30 minutes, face down, in a correct stack. 🚫 Destructive Documented: CSD-INC-0001 + 2 further sightings · C · Single Report
Special Illustration Rares, Rainbow Rares, heavily textured full arts Edge-to-edge foil plus raised varnish texture: the two features behind the gold-card loss. Heat softens the varnish and pressure flattens it, and texture does not come back. No heat press failure is on record for these yet; this is a precaution until someone runs a stepped test on bulk copies. 🚫 Destructive Inferred, not tested — extrapolated from CSD-INC-0001 · PKM-MOD-TEXTURED · PKM-SV-SIR · D · Inferred
Lenticular / 3D / motion cards The image is a ridged plastic lens. Heat and pressure flatten the ridges and the effect is gone. 🚫 Destructive Reasoned from construction · D · Inferred
Clear acetate / plastic cards The whole card is plastic. It warps, clouds, and takes on the texture of whatever it's pressed against. 🚫 Destructive Reasoned from construction · D · Inferred
Metal, wood, cloth-patch and relic cards Mixed materials expand at different rates; adhesives holding a relic window or patch let go. 🚫 Destructive Reasoned from construction · D · Inferred

Heat press only under tighter limits

Card / class Limit Rating
Japanese full arts (Poncho Pikachu, etc.) 150 °F (65 °C) maximum. Standard temperatures cause permanent damage. ⚠ Conditional
All Japanese stock Thinnest stock, fastest absorption. Shortest hydration windows (timing tables), hydration-phase solution preferred, 160 °F maximum. ⚠ Conditional
Reverse holos (any era) Full-face foil. Low temperature, face down, never with a heat pen held in one spot. ⚠ Conditional
Base / Jungle / Fossil star-foil holos Physically tough, but only hydrate with a humidor or hydration-phase solution — never distilled water or card spray. See Star Foil rule. ⚠ Conditional
Sports chrome, refractors, Prizm Metallised stock, but no data on file. Treat as untested: a bulk card first, every time. ❔ Untested
Any card already graded, recolored, or previously restored Unknown history means unknown layers, inks and adhesives. Prior recolor inks can migrate under heat. ❔ Untested

Never, on any card

Unsafe:
 * Face up. Cards always go in face down, back up, foil against parchment.
  • Still too wet, and face up. The clear front film shrinks as it dries and pulls back from the edges, exposing the paper. It looks like edge whitening, it isn't, and it is permanent. CSD-INC-0003.
  • Above 180 °F (82 °C). Holo damage and adhesive separation.
  • With an unverified temperature. Press dials are frequently 15–25 °F off. Measure the platen with an infrared thermometer before trusting the dial.
  • Without identifying the card class first. Check this list and the Card Sensitivity Database.
  • On a valuable card you haven't run the identical cycle on with a bulk card of the same class.
Tip: Seen a card fail in a press? The list above grows from reports, and the reports that matter most are the failures. Log it, with temperature, time and stack, at Report an Incident. Cheap test material: damaged holo bulk lots on eBay.
Part 1 — The Science of Hydration, Drying & Heat
Adapted with permission from Matthew Musick, Shiny Asset Exchange.

The Core Principle

"Not all cards respond the same way."

Same moisture, different results. Same heat, different results. Same damage, different solution.

Why? Because the cards are not the same. A 1999 Base Set holo, a Japanese modern Pokémon card, a 1995 Magic card, and a 2025 One Piece card are four completely different materials that happen to be the same size. Treating them identically is how cards get destroyed.

WARNING: Everything on this page depends on correctly identifying your card stock first. If you skip that step, none of the timings below apply to you.

The Two Biggest Mistakes

Mistake 1: Applying moisture directly to the card

Moisture hits the surface unevenly before the fibers have any chance to absorb it gradually.

Unsafe: Result: paint fade. Direct application — spraying the card, wiping it with a wet cloth, dunking it — is the fastest way to lift ink off a card. Never apply moisture directly to the card surface.

Mistake 2: Using too much moisture

The card becomes oversaturated and swells beyond the point where it can be corrected.

Unsafe: Result: bubble creasing and separating layers. Once the fiber layers swell apart from the ink core, they do not reliably go back. This is usually permanent.

"These cause the exact damage people blame on the process."

Cause and effect

Cause Result
Direct moisture application Paint fade
Residual moisture (not fully dried) Bubble creasing
Too much moisture Permanent texture shift / layer separation

Card Anatomy

To control moisture you have to know where it goes. A modern foil trading card is a sandwich, and moisture only enters from one side.

What a card is made of

Layer (front → back) Behavior
PET / Foil Cannot absorb moisture — responds to heat only
Cardstock (front) Absorbs as moisture travels forward through the fibers
Ink Core Color and design — does not absorb, sits between the two cardstock layers
Cardstock (back) Primary absorption layer — moisture enters here first
Image / Ink Finish Surface print layer

How each layer behaves

Caution: The PET/foil layer cannot be hydrated. It is physically impossible for moisture to penetrate it. It is also the layer that reacts to heat faster than any other — which means it is where heat damage happens first.

The key insight: Hydration travels back to front. Heat damage travels front to back. They move in opposite directions.

This is why moisture is introduced from the back, and why the card goes face down in the press — you want the heat-sensitive foil furthest from the source of the problem, and the absorbent back doing the work. It is also why the cards with the most plastic film on their face are the ones on the do-not-press list.

Card Stock by Game

Pokémon — stock tiers

Ranked thickest to thinnest. Thicker stock tolerates more moisture and more time. Thinner stock has less margin for error.

Rank Stock Notes
Thickest Base, Jungle & Fossil (English) Star foil layer — thicker than any other standard Pokémon card
2nd Vintage English Solid stock — reliable and even response to heat & moisture
3rd Mid-Era English Slightly thinner — more variable behavior under heat
4th Modern English Thinner stock — more sensitive, less moisture needed
Thinnest Japanese Vintage & Modern Thinnest of all — hardest to work on, least tolerance for error

Same damage ≠ same solution.

Pokémon — how each hydrates

Card Absorption behavior
Vintage Pokémon Absorbs slowly and evenly — longest hydration time
Modern Pokémon Absorbs fast — less moisture needed
Japanese Pokémon Fastest absorption — least moisture, most precision required
WARNING: Star Foil (Base / Jungle / Fossil) — special rule. These can only be hydrated via humidor or a dedicated hydration-phase solution. Do not use distilled water or standard card spray on Star foil.

Yu-Gi-Oh!

  • Thinner core than Pokémon
  • Different foil bonding structure
  • Reacts faster to moisture — monitor closely
  • Less tolerance for error than thicker stocks

"Fast reaction = smaller window between right and wrong."

Magic: The Gathering

  • Multiple card stock changes across the years
  • Older stock behaves very differently from modern printings
  • Coating differences significantly affect moisture absorption
  • You must identify the era/set before determining a hydration approach

"Know your set before you start." See Magic: The Gathering Cards for set identification.

One Piece & Dragon Ball Z (Bandai)

  • Both manufactured by Bandai — same card stock
  • New, thicker card stock
  • Takes longer to hydrate fully

Same manufacturer, same stock, same approach. "Thicker stock = more patience during hydration."

The Hydro Pump Method

The Hydro Pump Method is a controlled-moisture technique: the moisture never touches the card directly. It goes into a foam pad, and the card takes what it needs on its own terms.

The setup:

  1. Apply moisture to an EVA foam pad — never to the card
  2. Place one layer of parchment paper on each side of the card (two layers if using hydration solution — see below)
  3. Sandwich the card between the foam pads
  4. Clamp lightly and leave for the time appropriate to the card stock
Safe: Why this works: moisture distributes evenly across the entire card surface, and the fibers are prepared gradually without ever being oversaturated. The foam does the work — the card absorbs on its own terms.

Materials:

Hydration Solution vs. Distilled Water

A dedicated hydration-phase solution behaves differently from plain distilled water. It is slower and gentler, which is exactly what you want on delicate stock.

Distilled water / card spray Hydration Phase solution
Faster absorption, shorter windows More consistent moisture control
Standard surface behavior Better surface preservation
Requires higher press temperatures Allows lower press temperatures
More variable results More predictable, repeatable results
One layer of parchment Two layers of parchment
Not safe on Star foil Ideal for Star foil and Japanese Pokémon

"Same method. Better results. Lower risk."

Tip: The trade-off is time. Hydration solution roughly doubles-to-triples the hydration window versus distilled water, but it drops the required press temperature and widens your margin for error. On thin or high-value stock, that trade is almost always worth it.

How Much Is Too Much?

Under-hydrated Properly hydrated Over-hydrated
  • Card still rigid
  • Fibers not relaxed
  • Press will fight the structure
  • Result: incomplete correction
  • Card has slight flexibility
  • Fibers relaxed, not saturated
  • Moves evenly under pressure
  • Result: controlled restoration
  • Card feels soft / limp
  • Surface visually affected
  • Layers beginning to separate
  • Result: often permanent damage

The goal: fibers relaxed, not saturated.

Hydration Timing by Card Stock

These are starting points, not laws. Environmental humidity, card condition, and how much moisture went into the foam all shift these numbers. When in doubt, check early and check often.

Hydro Pump — distilled water / card spray

5–6 sprays per EVA foam pad · 1 layer of parchment

Time Card stock
2 hours Yu-Gi-Oh!, Japanese Pokémon, Modern Pokémon
3–4 hours Vintage Pokémon, Mid-Era Pokémon
6–8 hours Magic: The Gathering, Bandai (One Piece / DBZ), Digimon

Hydro Pump — hydration phase solution

5–6 sprays per EVA foam pad · 2 layers of parchment

Time Card stock
5–6 hours Yu-Gi-Oh!, Japanese Pokémon, Modern Pokémon
8 hours Vintage Pokémon, Mid-Era Pokémon
2 × 6 hours Magic: The Gathering, Bandai (One Piece / DBZ), Digimon

Knowing When It's Ready: The Flexibility Test

Lightly bend the card to feel how flexible and malleable the stock has become. This is a feel test, not a look test — you are reading the fibers, not the surface.

What you feel What it means
Still rigid / snaps back quickly
Caution: Not ready — needs more time
Slight give — bends without cracking
Safe: Ready — proceed to card work
Soft / bends too easily
Unsafe: Over-hydrated — stop, let it air out

"The window between under and over is where results happen."

Why Drying Is Half the Process

Moisture that goes in must come out evenly. The press does dry the card — but only if it is done correctly, and uneven drying creates brand new damage on a card you just successfully hydrated.

Hydration + Drying
=
Restoration
Hydration without
proper drying
=
New damage

How you dry is just as important as how you hydrate.

Pre-Wicking

Pre-wicking is the step most people skip, and skipping it is the cause of a surprising number of "the press ruined my card" stories.

The method:

  1. Place the card in a book with a light weight on top
  2. Leave it for 12 hours
  3. The book's pages slowly wick moisture out of the card
  4. The book does the drying work — not the press
Safe:
 Pre-wicking eliminates:
  • Back of card warping from excessive heat
  • Card curving awkwardly after drying
  • Parchment paper folding indents pressed into the card

It also saves energy — there is no need to run a press for hours on end when a book will do the bulk of the work overnight for free.

"Let the book do the drying. Let the press do the restoring."

WARNING: The one exception: skip pre-wicking when you are intentionally treating delamination. In that case you want the residual moisture present when the card enters the press so the layers can reseat. Every other time, do not skip it.

The Complete System

01 — Hydration Phase 02 — Card Work 03 — Pre-Wick 04 — Heat Press (Dry)
Moisture prepares the card Work out creases & dents by hand Let the book dry the card (skip if delaminating) Restructure and lock in shape

Moisture + Hand Work + Drying + Heat = Control

Note that step 2 — the actual crease and indent work — happens by hand, on a hydrated card, before any heat is applied. The press is not the tool that fixes the crease. The press is the tool that locks in the fix.

Press Temperatures

Method Temp Time / process Notes
Fire Blast + Pre-Wick 160°F 4–5 hrs Pre-wick before press
Fire Blast (no pre-wick) 160°F 6–8 hrs Delamination treatment
Hydration Phase + Pre-Wick 150°F 1 hr → pre-wick Pre-wick completes drying
Hydration Phase (delamination) 150°F 1 hr → pre-wick → 1 hr Both press sessions at 150°F
Tip: Hydration phase solution reduces the required temperature and the required time significantly — 150°F for 1 hour versus 160°F for 4–5 hours. Less heat and less time on a foil layer is always the lower-risk path.

Heat Press Layering Order

Build the stack from the top plate down. Cards go face down.

# Layer Spec
▲ HEAT PRESS — TOP PLATE
1 3× Aluminum sheets 12×12"
2 EVA foam 2 mm, 9×12"
3 Parchment (folded in half) 12×16" folded = 2 layers
4 Cards — face down Max 8 · Recommended: 4
5 Parchment (folded in half) 12×16" folded = 2 layers
6 EVA foam ×2 Extra layers balance heat tension on the card front
7 3× Aluminum sheets 12×12"
▼ HEAT PRESS — BOTTOM PLATE

Materials used

Item Product
Aluminum sheets ZOFORTY 5052 — 12×12", 1/64" thin
EVA foam Better Office Products — 2 mm black, 9×12"
Parchment Katbite unbleached — 12×16", fold in half
Heat press Craft heat press with precise temperature control
Caution: Run 4 cards, not 8. The maximum the stack physically holds is 8, but heat distribution gets measurably less even as you fill the plate. Four is the recommended working number.

The extra EVA foam layer on the bottom is not optional padding — it balances heat tension across the card front, which is the surface you cannot repair if it goes wrong.

Part 2 — Community Heat Press Methods
Everything above this banner comes from Matthew Musick's presentation. Everything below it is community practice gathered on this wiki: blotter stacks, the IPA vapor crease method, cooling, the refrigerator set, and the troubleshooting tables. It used to live on the separate Heat Press and Heat Press Drying pages, which now point here. Where the two parts disagree, the safer number is the one to start from.

When to Use a Heat Press

A heat press speeds up drying after a card has been hydrated. Standard pressing takes 4–7+ days; a heat press cycle takes hours. It also locks in hand crease work. That speed is the whole benefit, and it costs a much smaller margin for error.

Appropriate Don't
  • After hydration or humidity storm treatment
  • Grading deadlines and time-sensitive work
  • Stubborn bends that standard pressing hasn't resolved
  • Locking in crease work done with the IPA vapor method
  • High-volume work, once you've done it dozens of times successfully
  • On any card in What NOT to Heat Press
  • On a card that hasn't been hydrated first. It won't flatten and can crack
  • As your first restoration technique. Master Pressing and Flattening first
  • Without precise temperature control
  • On valuable cards, until you're experienced
  • When you're rushed and likely to skip a step

Community Stacks

The EVA foam / parchment / aluminum stack above is the reference setup. Two other stacks are common. Both use a dry blotter to absorb the moisture the heat drives out, so they need shorter dwells.

WARNING: Every stack: card face down. Back up, foil against parchment. The heat-sensitive layers are all on the front, and the absorbent back should face the blotter and the moisture work.

Blotter drying stack

Built from the top plate down:

Aluminum sheet
Dry blotter or backing board
Parchment / silicone paper
Printing paper / thin cardstock (buffer)
CARD — face down (back up)
Parchment sheet (protects the foil face)
Aluminum sheet

Thick-plate crease stack

Used after IPA vapor crease work:

Plate — 1/4" glass or aluminum
Backing board
Dry blotter (thick)
1–2 sheets Katbite parchment
CARD — face down (back up)
Parchment sheet
EVA mat or backing board
Plate — same as top

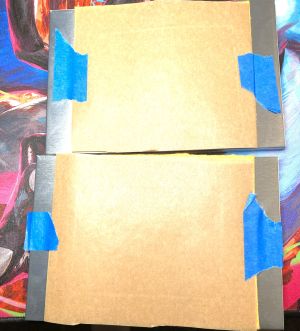

Small pieces of masking (blue) tape can hold the stack in place on the plate, so nothing shifts when the press closes and the parchment doesn't bunch or wrinkle.

What each layer does

Layer Purpose
Aluminum sheets Even heat distribution, prevents hot spots, rigid flat surface
Dry blotter Absorbs the moisture driven out by heat. Must be completely dry — a wet blotter in a hot press makes steam
Parchment under the blotter Stops blotter texture transferring into the card
Printing paper Buffer between blotter and card back
Parchment on the face Protects the holo / front surface
Backing board / EVA Even pressure across the card, extra absorption

Blotter thickness changes the timing. Thick blotters slow heat transfer and need longer dwells; thin blotters transfer faster, so cut the time down to match. Thick blotters are recommended because they give better control and fewer accidents.

Without blotters (plates, parchment and card only) you need lower temperatures, longer dwells, a less humid card going in, and more experience. The blotter method suits most people better.

Tip: The exact stack is still being refined by the community. Experiment on bulk cards. Write down what you change so a result can be repeated.

Community Temperature Guide

Unsafe: This table does not cover every card class, and one of its rows has been documented destroying a card. A gold secret rare was lost at 150 °F for 30 minutes, the setting the "textured" and "foil-heavy" rows suggest. Check What NOT to Heat Press first. Anything listed there overrides this table.
Card type Temperature Press time (blotter stack) Notes
Vintage English 170 °F (77 °C) 30–60 min Most heat-tolerant stock
Modern English 160–170 °F (71–77 °C) 30–60 min Standard starting point
Japanese standard 160 °F (71 °C) 15–30 min More sensitive
Japanese full art 150 °F (65 °C) 15–30 min Very sensitive. The lower temperature is critical
Textured / alt art 150 °F (65 °C) — Not gold hypers, SIRs or rainbow rares. Those take no heat
Foil-heavy 150–160 °F (65–71 °C) — Foil can separate. Total loss documented at 150 °F on full-face metallised gold
WARNING: Do NOT exceed 180 °F (82 °C). Holo damage and adhesive separation.
Tip: Compare this with Press Temperatures in Part 1. Musick's cycles run lower and longer: 150 °F for 1 hour with hydration-phase solution, or 160 °F for 4–8 hours. When in doubt, choose lower temperature and more time over higher temperature and less time. Heat damage can't be reversed. Slow drying can always be extended.

Running the Press

Prerequisites

Before the card goes in the press, it should already have been:

  1. Hydrated: Hydro Pump, humidor or Humidity Storm
  2. Worked by hand: creases, dents and edges, while the fibers are relaxed
  3. Pre-wicked, or briefly cold-pressed in standard plates. See Pre-Wicking

Step by step

  1. Cut printing paper to plate size. Confirm every blotter is completely dry
  2. Assemble the stack, card face down
  3. Place the stack in the press and close it. Practice varies on pressure:
    • Some pull the lever fully down for firm, maximum contact (and tighten the screw knob on top)
    • Some let the platen rest gently on the stack
  4. Set the temperature, verified with an IR thermometer, and turn the press on
  5. Once it reaches temperature, either:
    • Method A: turn it off immediately and let it cool in the press, or
    • Method B: hold at temperature for 5–15 minutes (blotter stack) or the full dwell from the tables above, then cool
  6. Leave it closed until fully cool. See below
Caution: The key is gradual temperature change. Rapid heating or cooling causes uneven fiber behavior and warping.

The Cooling Phase

This step is critical and cannot be rushed.

  1. Turn off the press (if not already)
  2. Leave the card clamped inside until the whole stack is back at room temperature
  3. Do not open it to "check". Temperature shock causes warping
  4. Expect 1–2 hours at minimum. Overnight (6–24 hours) is ideal. If the blotters still feel warm, leave it longer
  5. Remove and inspect. Repeat the cycle if needed

After heat pressing, Episode 41 recommends acclimating the card between glass plates with lighter clamps for 48 hours.

The Refrigerator Set (Optional Final Step)

  1. Remove the fully cooled card from the stack
  2. Place it in a penny sleeve, then a screwdown holder
  3. Tighten the screws only until you feel resistance. Do not crank them
  4. Refrigerate (not freezer) for 4–5 hours
  5. Remove it and let it warm to room temperature inside a closed container, 30–60 minutes
  6. Do not open the container until it has fully equalized, or condensation forms on the card
Tip: The idea behind the fridge step: cold contracts the fibers and "sets" them in their new flat position. It is community practice, not tested. Skip it if your results are already holding.

The Golden Rule: Gradual Transitions

  • Humidity → heat: hydrate, work the card, pre-wick or brief cold press, then heat
  • Hot → cool: cool completely in the press before opening
  • Cold → room temperature: equalize in a closed container

Rushing any of these transitions risks permanent shape distortion.

The IPA Vapor Method for Crease Reduction

The current preferred community method for stubborn creases. IPA vapor plus humidity relaxes fibers faster than water alone, and the heat press then locks the result in.

Why IPA + water

  • Water relaxes the fibers
  • IPA gets through the card layers faster than water alone
  • IPA evaporates quickly, which lowers the risk of over-humidifying
  • Together they soften fibers more effectively for crease work
WARNING: Use 99% isopropyl alcohol only. 70% rubbing alcohol contains additives and extra water that can damage cards. 99% evaporates cleanly and leaves no residue. Solvents are rated separately from heat in the Card Sensitivity Database. Reverse holos, textured cards, gold and SIR classes are rated style="background:#f8d7da; color:#721c24; text-align:center; font-weight:bold; white-space:nowrap;" | 🚫 Destructive for solvents. Don't use IPA vapor on them.

Materials

  • 99% isopropyl alcohol and distilled water
  • Mixing container and a humidor
  • Heat press, thick dry blotter, thick pressing plates (glass or heavy acrylic), parchment
  • Pen tool (optional), for working the crease while it's pliable

Solution: 1 part 99% IPA to 2 parts distilled water.

Caution: IPA is flammable. Work in a well-ventilated area, away from flames, sparks and heat sources. Never heat the IPA solution directly and never put it in the press.

Process

  1. Prepare the humidor. Charge the humidity strip with IPA solution instead of plain water, or put a small dish of it inside. Target 75–85% RH. Let it stabilize for 15–30 minutes with a good seal
  2. Humidify the card, holo side up. It will curve ("taco") as it absorbs the vapor. A noticeable curve means the fibers are relaxed. The heat press will flatten it
  3. Work the crease (optional). You have 30–60 seconds once it's out. Roll gently along the crease with a pen tool using outward strokes, away from the crease center, without heavy pressure. See Edge and Corner Work and Crease Removal
  4. Assemble the thick-plate stack immediately, card face down
  5. Press with firm pressure at your card-class temperature, then cool completely
  6. Inspect, and repeat if needed. Expect 2–5 cycles for meaningful improvement on a moderate crease
Crease IPA vapor time
Light 30–60 minutes
Moderate 1–2 hours
Heavy 2–4 hours

No-Heat Rapid Drying

If you're working on a card from the do-not-press list, or you simply aren't comfortable with heat:

  1. Complete hydration and hand work
  2. Standard plate press for 24–48 hours
  3. Move to a dry blotter stack under light pressure
  4. Final 24 hours in a screwdown holder
  5. Optional: refrigerator set, then gradual equalization

This takes 3–4 days instead of 7+ and carries no heat risk.

Rosin Press

WARNING: A rosin press is tier III, alteration, at any setting under the Standards of Practice. A heat press at its gentlest is tier II. They are not interchangeable.

A rosin press is a pressure tool, not a heat tool. Run cold or nearly cold, it has been used on about 170 modern smooth-front cards that went on to pass grading. Run hot, the way it was designed to be used, it destroys cards. Never use it to dry a card. Two solid platens leave the moisture no way out. CSD-INC-0004: a damp card at 150 °F / 200 PSI / 5 min deformed its sleeve and came out with a gloss that wasn't its own. Never use it on vintage. It irons the natural grain flat. Full method: Rosin Press.

Equipment

Item What to look for
Heat press Precise digital temperature control (not low/med/high), even heat across the plate, consistent hold, adjustable pressure. Craft or t-shirt presses work and are affordable. Shiny Asset Exchange's studio uses a 15×12" plate, because plate size and evenness matter more than any other feature. 15×12 heat presses on Amazon · craft heat press. Never use an iron. It's too inconsistent
Infrared thermometer Dials are often 15–25 °F off. That error alone is the whole margin on a textured card. IR thermometers on Amazon
Aluminum sheets Thin 5052, 12×12". ZOFORTY 5052
EVA foam 2 mm for the heat press stack (Better Office Products 9×12). 5 mm for the cold Hydro Pump book-press stack (5 mm EVA)
Parchment Unbleached: you don't want bleaching agents near a card under heat. Katbite unbleached 12×16. Buy the big pack
Blotter paper Thick, cotton / archival, always dry. Blotter paper on Amazon
Screwdown holder 4-screw, for cooling and the fridge set. Never inside the heat press. Screwdowns on Amazon
Book / screw press For the no-heat Hydro Pump route: slow, sustained, adjustable pressure. Book presses on Amazon
Green LED inspection light At a low angle it shows dust, debris and fine scratches before you sleeve. Green work lights on Amazon

See Essential Tools for the full supply list.

Safety

Heat press: plates and stack get hot enough to burn. Use a stable surface where the press can't tip, never leave it unattended while heating, let everything cool before handling, and keep the work area clear.

IPA: flammable. No flames, sparks or heat sources nearby, good ventilation, and wash your hands afterward (it dries the skin). Consider eye protection while mixing, and store it in its original container away from heat. See Safety Guidelines.

Common Mistakes

Mistake Result Prevention
Direct moisture application Paint fade Moisture goes in the foam, never on the card
Residual moisture Bubble creasing Pre-wick; dry fully
Too much moisture Card bloating / layer separation Follow the timing tables. Less moisture, more time
Over-drying Fiber contraction / surface warping Don't extend dwells past the card's window
Wrong temperature Foil damage / orange peel Use your card class's temperature, verified with an IR thermometer
Too high a temperature Warping, discoloration, foil separation Start at 150 °F and raise it only if needed. Never above 180 °F
Pressing a card from the do-not-press list Film shrink, cracking, foil tunnelling, flattened texture. Permanent Check the list and the Card Sensitivity Database first
Pressing face up Heat and pressure land directly on the foil and top film Always face down
Pressing a card that is still too wet, face up Front film shrinks back from the edges, exposing paper. Permanent Face down, and pre-wick first
Skipping pre-wick Parchment folds and indents pressed into the card Book overnight, unless you're treating delamination
Skipping hydration Card won't flatten and may crack Always hydrate before heat
Opening the press while hot Thermal shock, warping Cool completely in the press
Wet blotters in the heat press Steam damage, texture destruction Use only dry blotters
Rushing fridge removal Condensation, reverse warping Warm slowly in a closed container
Cranking the screwdown Indent marks, edge damage Tighten only until you feel resistance
Filling the plate Uneven heat and pressure 4 cards, not 8. One at a time while learning

Troubleshooting

Symptom Cause What to do
Orange peel texture remaining Not enough heat / time too short Extend the dwell before raising the temperature
Foil burn Too much heat / ran too long Not repairable. Lower next time
Foil ridged, bubbled or tunnelled across the art Foil bond softened. Temperature too high for the card class Not repairable. Check the do-not-press list
Front film cracked or crazed Thin or aged film shrank under heat Not repairable. Log it in the incident log
Paper showing at the card edges Front film shrank back. Pressed too wet, face up Not repairable. Press face down and pre-wick first
Texture feels flat Embossed varnish crushed by heat + pressure Not repairable
"Cooked" appearance Far too hot Lower the temperature significantly
Texture change on back Temperature too high or too long Lower next time
Card warping / fiber contraction Too much moisture going in / no pre-wick Less moisture; pre-wick
Card warped after cooling Opened too soon, uneven cooling Cool longer, in the press
Card curved after drying Uneven moisture / skipped pre-wick Re-hydrate evenly; pre-wick
Foil appears wavy Trapped moisture, thermal shock Drier going in; cool slowly
Parchment indents in card Skipped pre-wick. Residual moisture present Pre-wick
Bend returned after the fridge Removed too quickly, condensation Equalize longer in a closed container
Crease no better Crease too deep; fibers broken Possibly permanent. Try more IPA vapor cycles
Whitening along the crease remains Fiber damage exposed the core Usually permanent, even when the crease improves

How to avoid them

  1. Assess card stock before starting — know what you're working with, and check it against What NOT to Heat Press
  2. Match hydration method and timing to the specific card type
  3. Never skip pre-wick unless intentionally treating delamination
  4. Know your operating temperature window — and stay in it
  5. When in doubt: less moisture, more time

Preparation prevents problems.

What Can't Be Fixed

Knowing the limit is part of the skill. No amount of moisture, heat, or patience reverses the following:

Unsafe:
  • Structural loss — fibers physically torn or destroyed
  • Severe ink or paint damage
  • Deep delamination past the point of reseating
  • Cards too far gone — more moisture will not help
  • Foil heat damage — permanent discoloration or burn
  • Plastic film damage — shrink-back at the edges, cracking, tunnelling
  • Flattened texture on textured and full-art cards

If a card is in one of these categories, additional processing does not improve it. It only causes more damage and wastes your time. Recognizing a card you should decline is a professional skill, not a failure.

Responsibility in Restoration

  • Precision over shortcuts — every time
  • Know your card stock before you apply anything
  • Match your hydration method to the card type
  • Know when to say no to a card
  • Overprocessing is one of the fastest ways to cause permanent damage
CONSISTENCY
over shortcuts
CONTROL
over guesswork
QUALITY
over speed
"The goal isn't just to improve a card — it's to restore it without compromising what makes it valuable."
WARNING: Disclosure. Restoration is legitimate work. Passing a restored card off as unrestored is not. Any card treated with the methods on this page has been altered and must be disclosed on sale or grading submission. See Altered Flags and the Restoration Service Agreement Template.

The System, Summarized

Hydration prepares.
Pre-wicking starts drying.
The heat press finishes.
Moisture + Hand Work + Drying + Heat = Control
Not the other way around.
Understand the card before you touch it.
"The difference between damage and restoration is understanding."
— Matthew Musick, Shiny Asset Exchange
📄 Download the full presentation — free

Video Resources

🎬 Want to hear it from Matthew?
Watch him present this material slide by slide in Part 3 of the Card Conservation Convention 2026 video. It's one of six sessions, alongside cleaning, grading, crease removal, building a restoration business, and a Q&A panel.

See Also

Free on this wiki:

Related techniques (member wiki):

Card stock references:

Affiliate Disclosure: Some links on this page are affiliate links. We may receive a small commission on purchases made through these links at no additional cost to you. This helps support the maintenance of CardConservation.com.

Part 1 is adapted with permission from Hydration & Drying: The Science Behind Card Restoration by Matthew Musick, Shiny Asset Exchange LLC. Part 2 and the do-not-press list are community material compiled by the Card Conservation wiki, and do not come from that presentation.

Retrieved from "https://cardconservation.com/index.php?title=Hydration_and_Drying&oldid=1147#When_to_Use_a_Heat_Press"
